No Electricity Locking System

Uniqueness of Namiki Coreless DC Motor lies in its coil windings.

"dyNALOX" is Namiki's original locking system, where torque is transferred from input to output, but not the other way around.

Features

  1. Outer force is disconnected without use of a low efficiency reduction system such as a worm gear or slide screw.: System can be made small in size
  2. No electric power is required in this system.: Contributes to low current consumption, emergency stop function

"dyNALOX" is designed to transfer torque from the input shaft to the output shaft, but rotation from the output shaft is locked so the torque from the outside does not transfer to the inside. This system can be easily adopted by adding a few extra millimeters on top of a planetary gear. With this, the motor is locked from outside force even under no-power conditions.

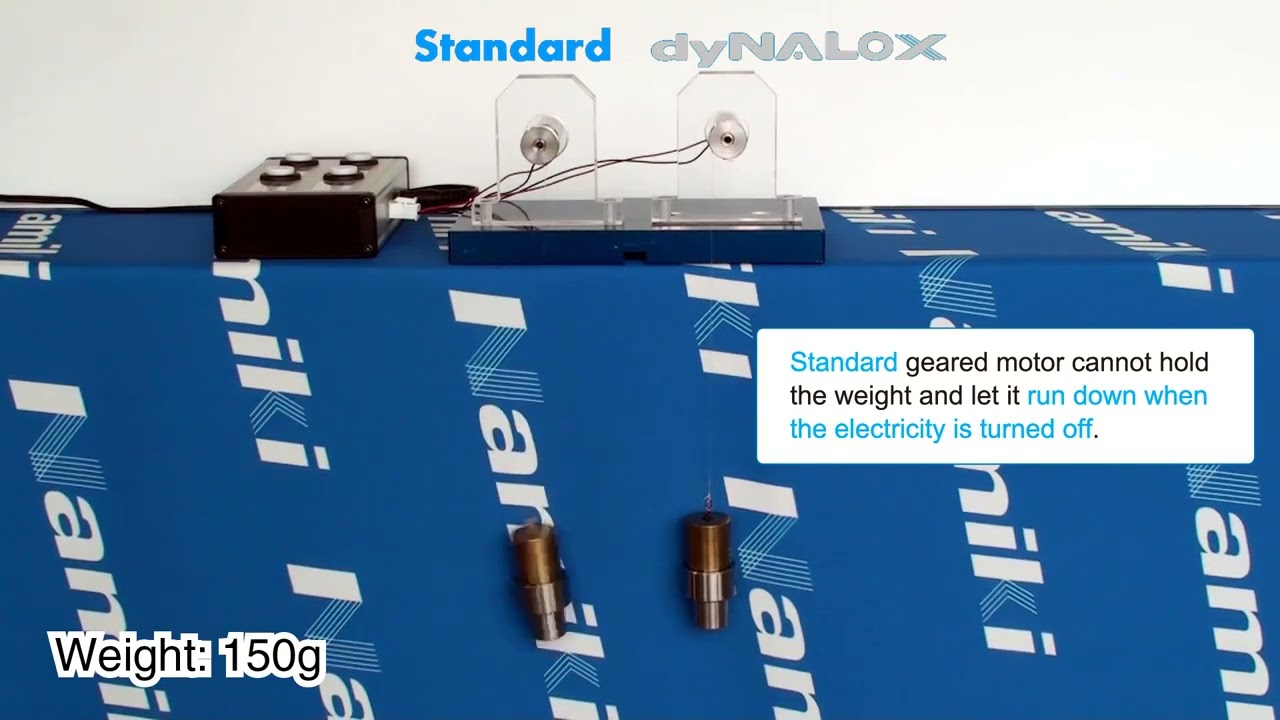

dyNALOX Movie

Composition and Mechanism

dyNALOX Mounted Planetary Gearhead

Feature

dyNALOX input rotor and the first stage of the planetary gear are made in one body to make it more compact.

Specification

dyNALOX series LPG07 LPG12
Outer diameter 7 12 mm
Max allowable torque 70 400 mNm
Max input speed 12,000 8,000 rpm
Shaft radial play ≤0.02 ≤0.02 °
Output shaft bearing Sintered sleeve bearing
Gear ratio (Efficiency) Total length 1Stage 4.7 : 1 (74%) 8.4 4.8 : 1 (57%) 15.7 mm
2Stage 22 : 1 (63%) 10.6 23 : 1 (66%) 19.5 mm
3Stage 105 : 1 (52%) 12.8 107 : 1 (60%) 23.3 mm
4Stage 494 : 1 (43%) 15.1 509 : 1 (52%) 27.2 mm
LPG07
Outer diameter[mm]
7
Max allowable torque[mNm]
70
Max input speed[rpm]
12,000
Shaft radial play[mm]
≤0.02
Output shaft bearing
Sintered sleeve bearing
Gear ratio (Efficiency) / 1Stage
4.7 : 1 (74%)
Gear ratio (Efficiency) / 2Stage
22 : 1 (63%)
Gear ratio (Efficiency) / 3Stage
105 : 1 (52%)
Gear ratio (Efficiency) / 4Stage
494 : 1 (43%)
Total length / 1Stage[mm]
8.4
Total length / 2Stage[mm]
10.6
Total length / 3Stage[mm]
12.8
Total length / 4Stage[mm]
15.1
LPG12
Outer diameter[mm]
12
Max allowable torque[mNm]
400
Max input speed[rpm]
8,000
Shaft radial play[mm]
≤0.02
Output shaft bearing
Sintered sleeve bearing
Gear ratio (Efficiency) / 1Stage
4.8 : 1 (57%)
Gear ratio (Efficiency) / 2Stage
23 : 1 (66%)
Gear ratio (Efficiency) / 3Stage
107 : 1 (60%)
Gear ratio (Efficiency) / 4Stage
509 : 1 (52%)
Total length / 1Stage[mm]
15.7
Total length / 2Stage[mm]
19.5
Total length / 3Stage[mm]
23.3
Total length / 4Stage[mm]
27.2
